Ease of Use

There is no easier way to share a few CD/DVDs. Simply connect to your computer or server via a SCSI adapter and cable. Each optical drive appears as a drive letter on the workstation to which it is attached. Upgrading a certain disc is as simple as replacing the disc in the drive.


Universal Access

Any workstation that can access the server and is allowed to view the Maxtet can access data contained on the discs in the Maxtet. Both PCs and Macs can access over Netware, Windows, Unix or Appleshare networks.


Fast, Simultaneous Loading

For database uploading applications, load up to twelve discs at a time rather than loading one at a time.


Mix-n-Match CD & DVD

Configure the system with CD-ROM drives, DVD-ROM drives (which also read CDs but are more expensive) or a mix of both. The tower or rack mount case can hold up to twelve drives.


Good for Copy protected discs

Discs which are copy protected cannot be loaded into a hard-disk caching CD/DVD Server. The Maxtet offers a solution to that problem.


Looking to load many discs into a server?

By attaching one or more Maxtets to your server, you can load many CDs or DVDs into your server more easily. Add twelve discs at a time per Maxtet rather than loading one at a time.


Add Optical Disc Readers

There are a number of applications where the task would be made easier by having multiple optical CD-ROM or DVD-ROM drives in the server. Customers have used Maxtets for

• QA of software discs;
• Loading many discs into a CD or DVD Server; or
• Making multiple discs available to a server application such as converting CD data format to a new format and saving that new format.

Models

Model	Optical Drives	Enclosure	Dimensions (HxWxD)	Shipping Weight
Maxtet XR	1 to 4	Desktop Mini-Tower	10.2” x 7.5” x 17.3”	30 pounds

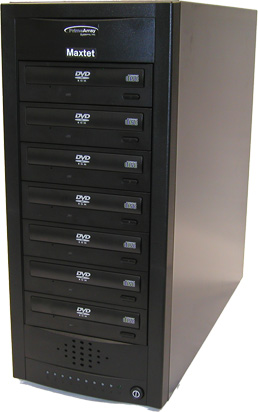

	5 to 7	Desktop Tower	18.5” x 7.0” x 17.0”	43 pounds
Maxtet XT - High Performance	1 to 4	Desktop Mini-Tower	10.2” x 7.5” x 17.3”	30 pounds
	5 to 8	Desktop Tower	18.5” x 7.0” x 17.0”	43 pounds
	9 to 12	Desktop Tall Tower	24.5” x 7.5” x 17.0”	50 pounds

Specifications

Maxtet XR

Combined Data Transfer Throughput:	20M/s
Optical Drives:	1 to 7
Power Supply:	300 watts 115/230v AC
External SCSI Connector:	SCSI-2 50 pin female centronics

Maxtet XT - High Performance

Combined Data Transfer Throughput:	260M/s
Optical Drives:	1 to 12
Power Supply:	300 watts 115/230v AC
External SCSI Connector:	68 pin high density SCSI-3 Ultra low voltage differential

Environmental
Temperature: 41-122sF (5-50sC)
Humidity: 8-80% (non-condensing)


NETWORK OPERATING SYSTEMS

The Maxtet supports the following network environments:
Novell NetWare 5.X/6.X
Microsoft Windows NT/2000
Microsoft Windows 95/98/ME
UNIX/Linux
MacOS 7.X and above


CD Specifications

CD-ROM Standards
Red-Book, Yellow-Book, CD-ROM XA,
CD-I Bridge (Photo-CD, Video CD), CD-I,
CD-I Ready, CD-G, and Multisession
(Photo-CD, CD-Extra, CD-RW, CD-R), CDTEXT
ISO 9660 (including Joliet), High
Sierra, HFS, Rock Ridge

Average Random Access Time
100 ms

Average Random Seek Time
80 ms

Sustained Data Transfer Rate
4,800 KB/sec (32X)

Burst Data Transfer Rate
20 MB/sec Sync.

Buffer Cache Size
256K/drive


DVD Specifications

DVD-ROM Standards
DVD-ROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R (read), CD-DA,
CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM,
CD-ROM XA, CD-I Bridge (Photo-CD,
Video CD), CD-I, Multisession CD
(Photo-CD, CD-Extra, CD-RW, CD-R),
CD-R (read), CD-RW (read), ISO 9660
(including Joliet), High Sierra, HFS, Rock Ridge

Average Random Access Time
DVD: 95ms
CD: 80ms

Average Random Seek Time
DVD: 85ms
CD: 70ms

Sustained Data Transfer Rate
DVD: 13,500 KB/sec max (10X)
CD: 6,000 KB/sec (40X)

Burst Data Transfer Rate
20 MB/sec Sync.
Buffer Cache Size
512K/drive


Warranty

1 year parts and depot labor.
Extended warranty and service plans available.
